PROJECT NOTE / HOTEL DISPENSERS

A resin dispenser, from brief to final sample artwork

A white resin body, a metal pump and a small stainless-steel label. We worked through a few precise decisions with the buyer: the label's proportions, the pump finish and the capacity printed on the artwork.

FROM THE PROJECT CORRESPONDENCEUnbranded resin soap dispenser appearance reference from the original artwork review.
Early appearance reference, February 2024. The pump shown here was later flagged as unsuitable because the requirement was for metal.
Initial dispenser dimensions
190 × 65 × 65 mm
Front label dimensions
45 × 75 mm
Sample artwork
Bath & Shower Gel

One label version to start with.

The buyer sent us a consolidated brief for a hotel soap and lotion dispenser on 15 February. It called for a white crystal resin body, a brushed metal pump with a screw connection, and a debossed stainless-steel label with a Pantone 186 C dot.

The proposed range covered body lotion, shampoo, conditioner, hand wash, and bath and shower gel. The sample brief concentrated on the bath and shower gel label for sign-off, alongside plain stock dispensers for a separate introduction.

We proposed individual white boxes inside an outer carton and estimated about ten days for sample preparation. On 20 February, the buyer confirmed that he wanted to proceed with the samples and requested a proof for approval.

A mockup raised a proportion question.

We sent a design image on 21 February. The buyer's reply the following day accepted the direction, but pointed out that the label appeared stretched on the dispenser mockup. His approval to proceed was conditional on keeping the original proportions and dimensions.

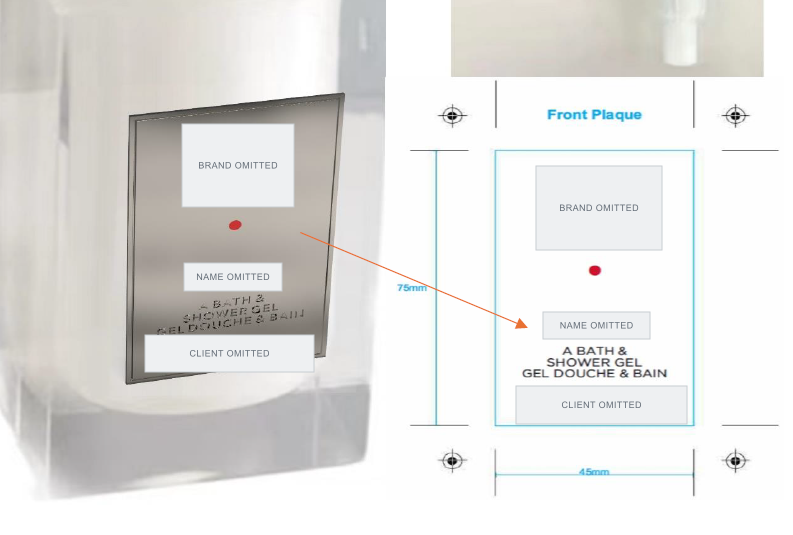

WORKING ARTWORK / FEBRUARY 2024Mockup & flat label
Original dispenser label mockup beside a flat 45 by 75 millimetre label drawing; customer names and brands are visibly masked.
The proportion review. This comparison was included in the 22 February reply. The flat drawing retains the 45 × 75 mm dimensions; the image on the left is a design mockup. Grey panels cover customer identifiers.View full drawing

“If the original proportions/dimensions remain the same, please proceed with samples.”

The buyer · 22 February 2024

We confirmed that the original label size would be retained and said we would arrange sample production that day. It was a useful distinction: the visual proof needed to reflect the intended 45 × 75 mm label.

PROJECT SPECIFICATIONS

How the specification was decided

DecisionWhat the project record shows
Project materialThe brief covered a resin dispenser and metal pump. It documents artwork review for a hospitality product.
Version reviewThe buyer asked to retain the 45 × 75 mm label proportions, compare pump finishes and revisit the capacity marking and engraving position.
Sample setFinal artwork covered five label versions and three requested sets, 15 sample bottles in total. The archive reaches approval of that brief.

See the custom project brief and artwork review process for the files, materials and decisions to include when requesting a versioned sample set.

The right shape still needed the right material.

The pump reference sheet marked the early head design as visually suitable, but rejected its plastic construction. The brief required metal. The buyer also asked for polished metal pump samples, so a possible finish change could be considered without another round of sourcing.

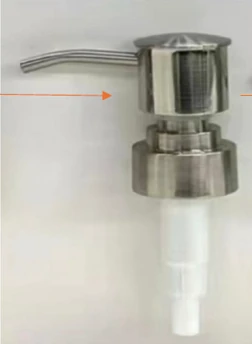

Brushed metal pump reference with its dip tube, cropped from the February email image.
Brushed metalThe reference selected for the metal pump style.

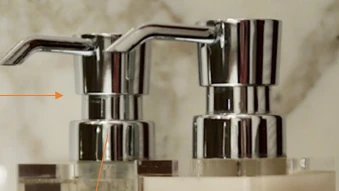

Two polished metal pump heads shown as a finish reference in the February email.
Polished metalA finish alternative requested for the sample review.

Both images appeared in the buyer's 22 February reference sheet. They show requested components and finishes; the thread does not confirm which additional pumps were supplied.

We said we would check availability with the pump supplier and include a suitable polished option with the samples if one was available.

Three questions came back with the artwork.

In April, the buyer reported that approval discussions were still continuing between the hotel client and the toiletries brand. The new questions affected the front plate, the capacity marking and a possible engraving position.

INITIAL BRIEF140 ml
APRIL CORRESPONDENCE230 ml

The buyer cited the capacity calculation in our earlier correspondence when requesting revised artwork. This is the capacity reported in the emails; no fill-test report is included.

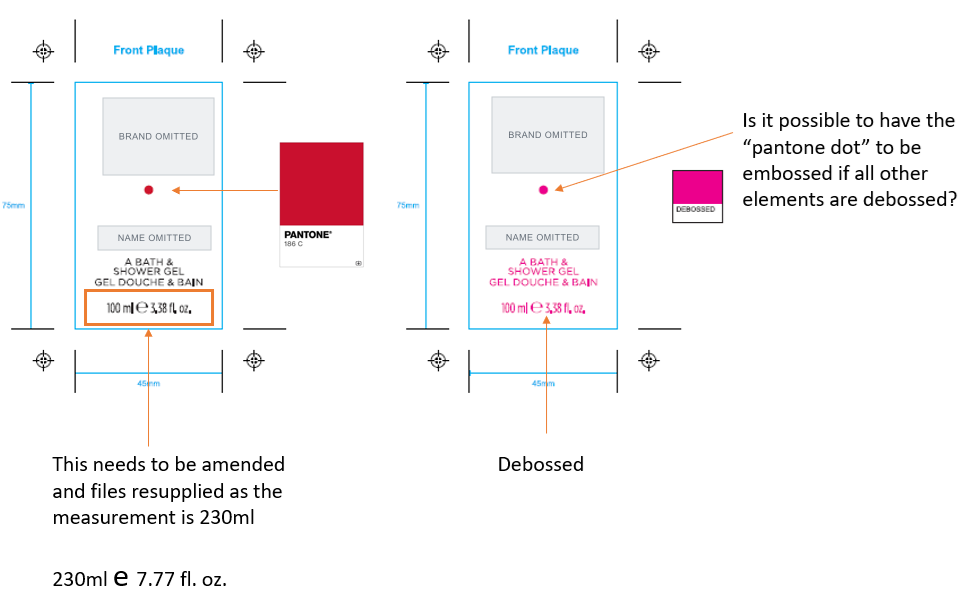

REVISION QUERY / 4 APRIL 2024Capacity & surface detail
Original annotated artwork requesting a 230 ml capacity marking and asking if the Pantone dot can be embossed while other elements are debossed; customer branding is masked.
The questions on the page. Original arrows, dimensions and production notes are preserved. The supplied label artwork still reads 100 ml; the annotation requests 230 ml. The 140 ml figure belonged to the initial product brief. This sheet records requested changes, with approval still pending.View full drawing
01Front label
The brand would not allow the hotel's name on the plate. The buyer requested a return to the original brand artwork, with the capacity marking revised. We confirmed that reverting the artwork was possible.
02Raised colour dot
The annotated artwork asked whether the Pantone dot could be embossed while the other elements remained debossed. We explained that the dot could not be embossed for this proposal.
03Separate engraving
An image proposed placing the hotel name near the lower part of the dispenser. We said laser engraving at the bottom was possible. This remained an option for the client to consider.

The buyer acknowledged our reply on 4 April and said he would discuss it with the client. The correspondence shows the available options being clarified, with revised artwork and the client's decision still pending.

Five label versions, then three complete sample sets.

Our correspondence continues beyond April's follow-up. On 30 April 2024, the buyer asked to proceed with two complete sets: ten laser-etched sample bottles across five label versions. It also requested a digital proof of the engraving position.

On 28 February 2025, the buyer supplied final amended artwork and said the project had been cleared for final pre-production samples. The revised request was three complete sets: 15 laser-etched bottles and five label versions for each set.

5label versions
3complete sets
15requested sample bottles

This is approval to move ahead with the final sample brief. Our archive does not establish completion or delivery of those samples or a subsequent bulk order. What it does show is a design that gradually became specific enough for a complete, versioned sample set.

About this project note

Drawn from our 2024 correspondence and its continuation through February 2025. The original photographs and drawings shown here belong to the 2024 design review; they are not presented as photographs of the later requested samples. Customer identifiers in the drawings are masked. Contact details, addresses, project codes, prices and payment information are omitted.
