Product library/Acrylic Display Stand/Diamond-Grid Acrylic Wine Racks
REFERENCE PRODUCT / ACRYLIC DISPLAY STAND

Diamond-Grid Acrylic Wine Racks.

Interlocking acrylic panels form a diamond-grid rack for displaying several wine bottles horizontally.

MADE TO YOUR BRIEF

Listed specifications are reference formats. Share the dimensions, color, finish and quantity your project needs.

01Dimensions Specify your size
02Color & clarity Project dependent
03Quantity Quote on request
PREPARE YOUR SPECIFICATION

Plan a diamond-grid acrylic wine rack

Slotted panels form repeated diamond-shaped positions for horizontal bottles. This multi-bottle rack needs a complete grid layout and loaded-weight review, compared with choosing contact points for one bottle on a curved stand.

Bottle range and positions
Provide the widest bottle body, length and requested count. Identify different bottle shapes that must share the rack.
Grid and assembled load
Mark rows, panel arrangement and outside footprint. Include the total filled weight and the support surface.
Assembly and packing
Specify color, artwork and whether panels travel separately. Review slot fit, assembly instructions and separators for transit.

Construction and customization

Structure and access
Interlocking panels form diamond-shaped cells for bottles laid horizontally. Bottles enter through the open cell ends, with no door or independent cradle in each cell.
Material, thickness and finish
Slot width must suit actual acrylic panel thickness and assembly clearance. Panel intersections, cell opening and contact edges should be dimensioned around the selected bottle body.
Fit and customization limits
Large shoulders, tapered bottles and partial loading can change contact and stability. Review insertion and removal in adjacent cells, plus how the rack is packed disassembled or assembled.

What to review in a sample

Assemble the proposed rack and review it with the intended bottle range and load. Check panel seating, bottle access and stability in its display location.

Reference photographs and scope

The reference shows an interlocking diamond grid with horizontal bottles; bottle dimensions remain separate from cell count. View the product gallery.

Questions for this format

Will a wine rack fit larger bottle shapes?

Give the maximum bottle body diameter and length, including any mixed collection. The grid opening and contact positions need to suit those actual bottles.

Can the same brief be used for a single-bottle stand?

A grid requires the full arrangement and total filled weight. A single-bottle stand requires the individual bottle contact and footprint; identify which format you need.

Send these details with your quantity, destination and target date. TOYUDA coordinates sourcing and specification review; material, sample and order terms are confirmed for each project.

PRODUCT NOTES

About this format.

Interlocking acrylic panels form a diamond-grid rack for displaying several wine bottles horizontally.

Design and gallery references

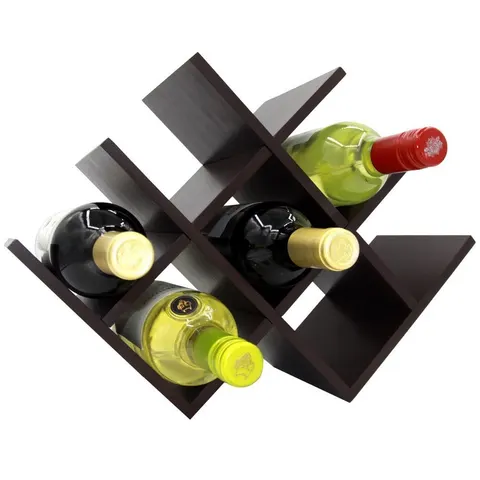

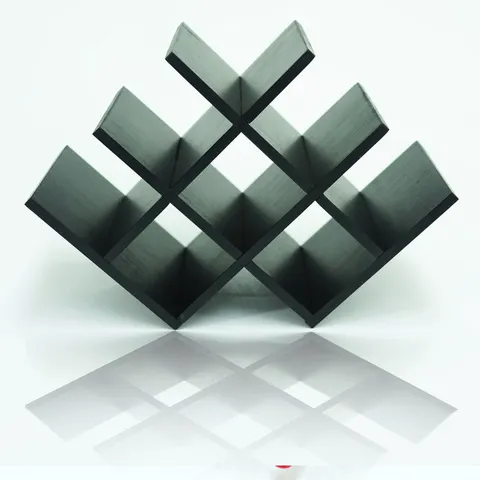

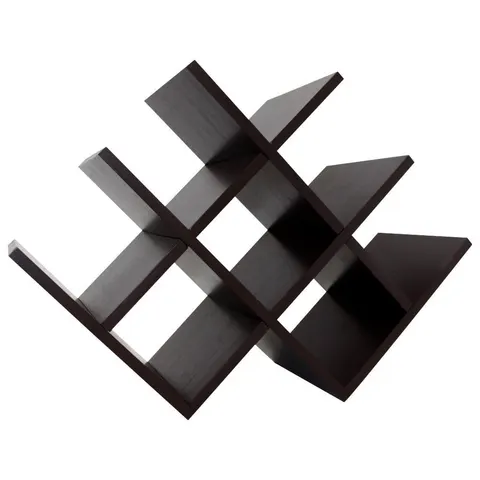

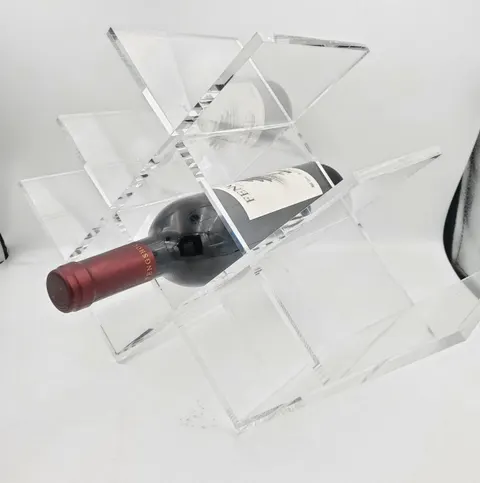

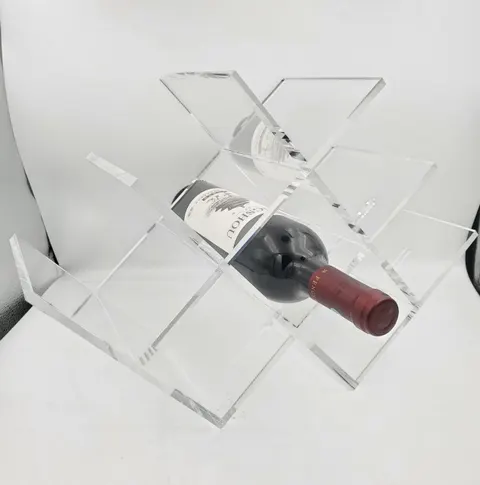

Clear and black references show repeated diamond-shaped bottle positions. Slotted panels create the grid, offering a grouped display rather than a separate holder for each bottle.

Plan the fit and working layout

Plan the bottle count and rack layout using the widest bottle body in the collection. Review the overall footprint, filled weight and assembly arrangement for the intended counter or shelf.

Details for your quotation

  • Bottle dimensions and required number of positions.

  • Grid arrangement, display footprint and filled weight.

  • Clear or black finish, panel assembly and packing requirements.

Select Request a quote and include the quantity, delivery destination and required date with your product brief.
